ANTI-STATIC STEEL WIRE SPIRAL REINFORCED HOSE

This product is used in places where static electricity is prone to occur, such as factories, shopping malls, coal mines, shipyards, etc., for the suction and discharge of various gases, liquids, powders, dust, etc.

Applications

Characteristics

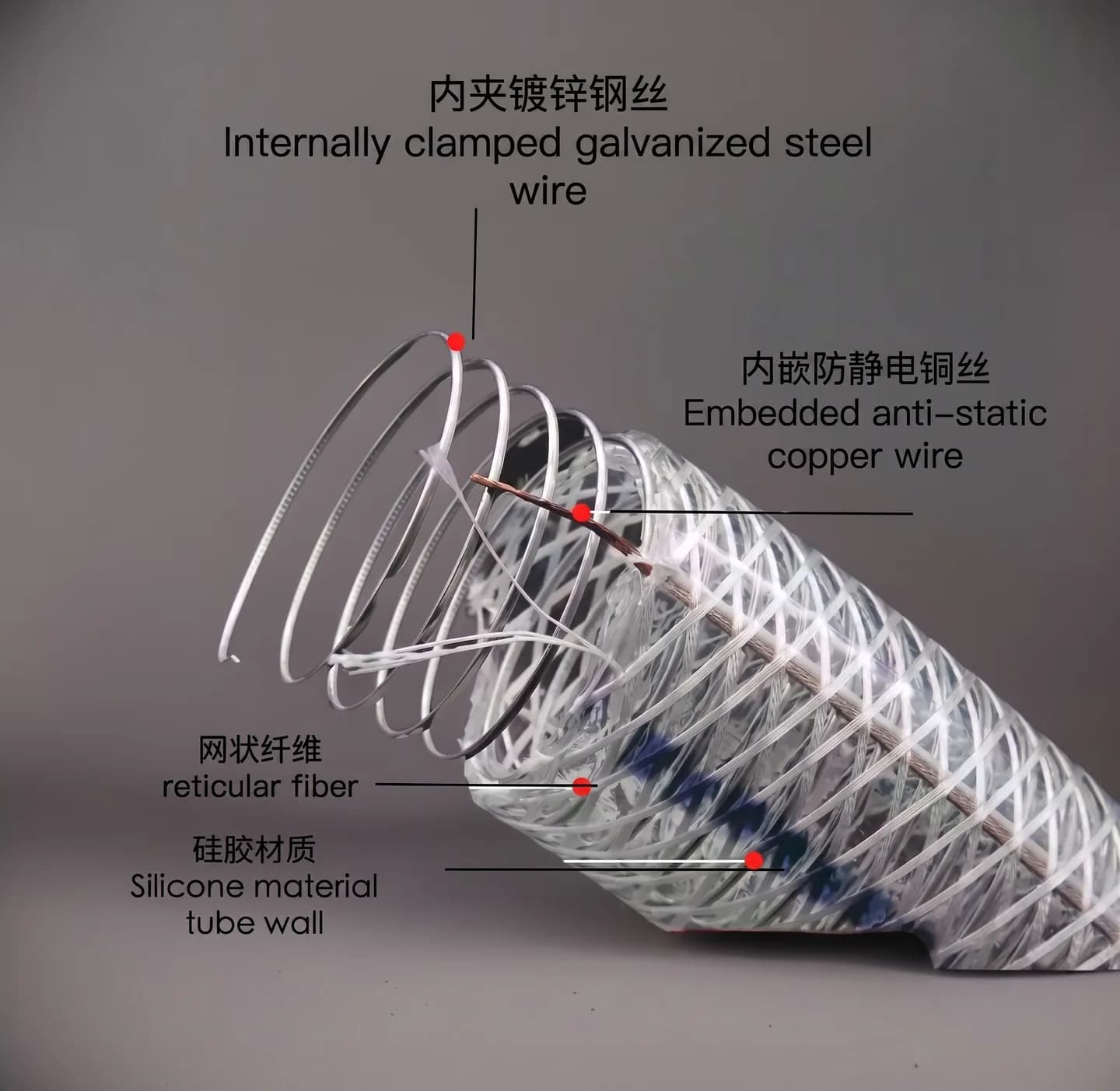

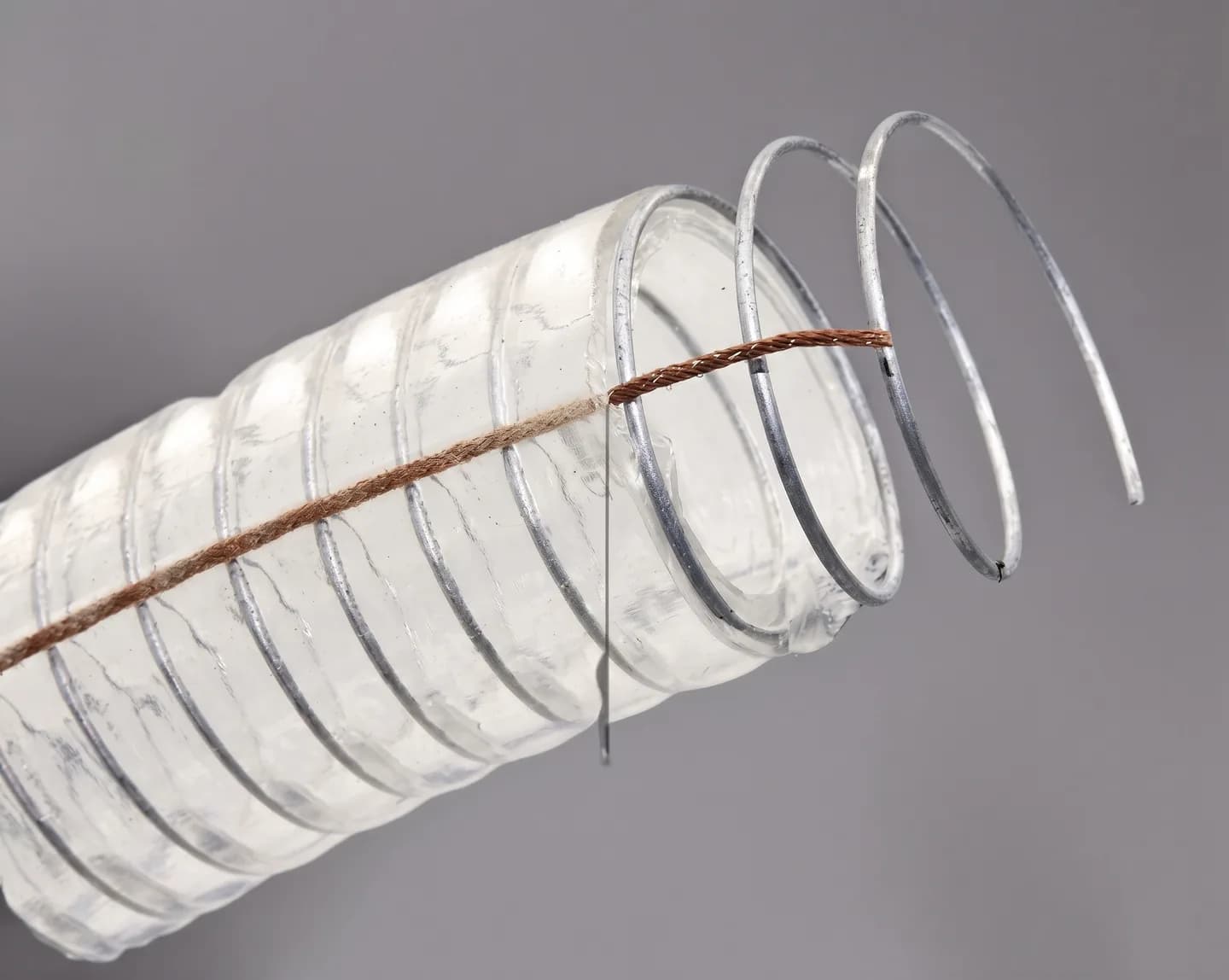

Built in anti- static copper wire to prevent blockage inside the building due to static electricity, and to prevent users from getting electric shock or being subjected to current impact.

Working temperature

-5°C ~ 65°C

Order confirmation

Dimensions, pressure, temperature, medium, color, marking, packaging, quantity, and supporting documents.

Back to products

ANTI-STATIC STEEL WIRE SPIRAL REINFORCED HOSE

Product specifications

Imperial size	Inner diametermm	Outer diametermm	Lengthm/roll	Working pressure at 23°CMPa	Burst pressure at 23°CMPa	Weightkg/roll	Packing outer diametermm	Packing heightmm	Volumem³
5/16	8	13	100	-0.1–1.1	3.3	13	400	200	0.032
3/8	9	15	100	-0.1–1.1	3.3	18	480	180	0.041
1/2	12	18	100	-0.1–1.0	3.0	22.6	540	180	0.052
5/8	15	22	100	-0.1–1.0	3	32	600	235	0.084
3/4	19	26	50	-0.1–1.0	3	19.6	610	160	0.061
1	25	33	50	-0.1–0.7	2.5	29	660	220	0.1
1-1/4	32	41	40	-0.1–0.7	2.0	33	750	250	0.141
1-1/2	38	48	40	-0.1–0.6	1.8	41	740	300	0.164
1-3/4	45	56	40	-0.1–0.6	1.7	54	850	290	0.21
2	50	62	40	-0.1–0.5	1.6	63	930	340	0.3
3	75	92	20	-0.1–0.4	1.3	67	1020	280	0.3
3-1/2	90	108	20	-0.1–0.4	1.2	85	1100	440	0.532
4	100	118	20	-0.1–0.3	1	93	1150	360	0.475
