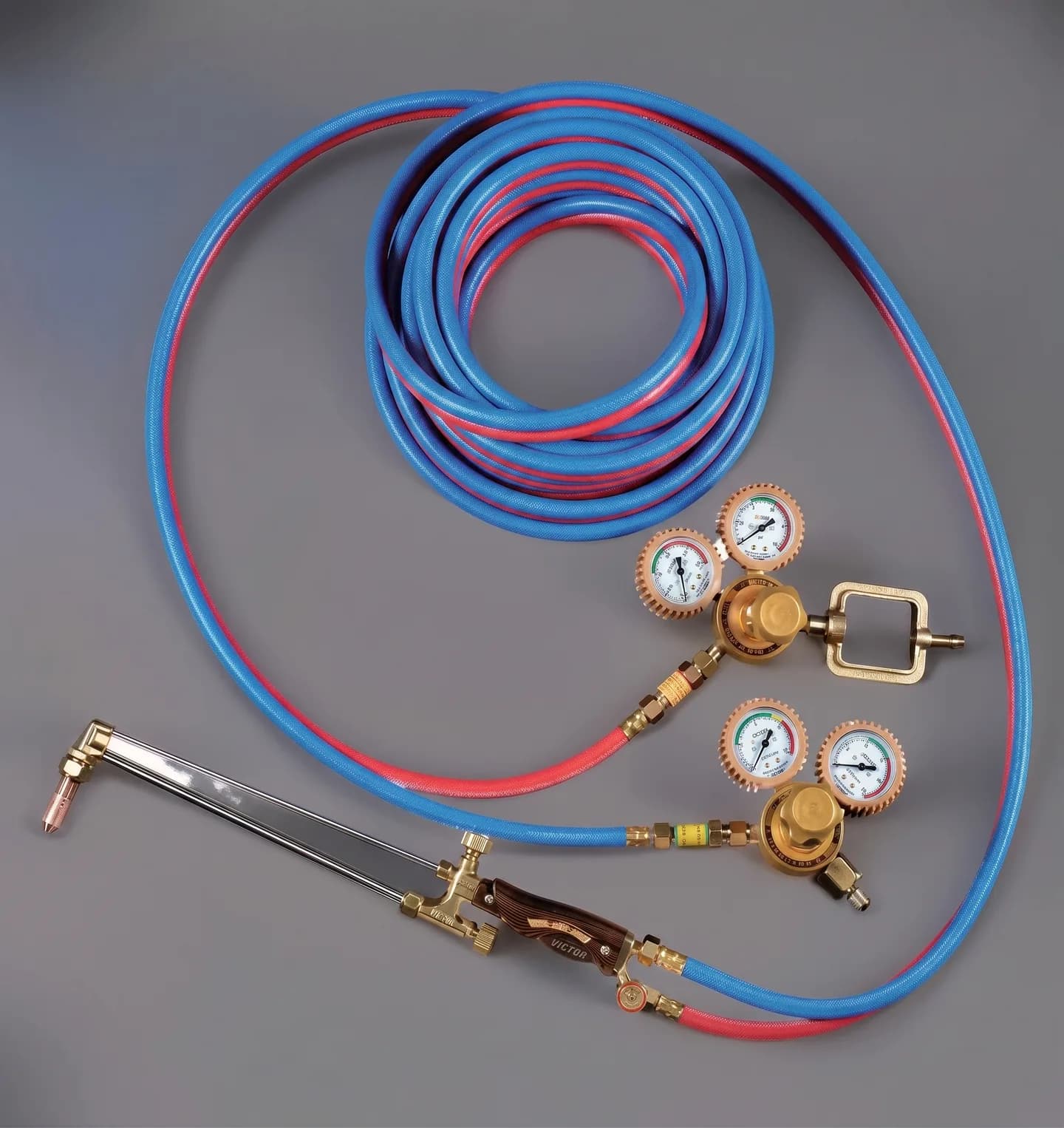

Applied to welding machinery, civil construction, and paint factories.
Applied to welding machinery, civil construction, and paint factories.

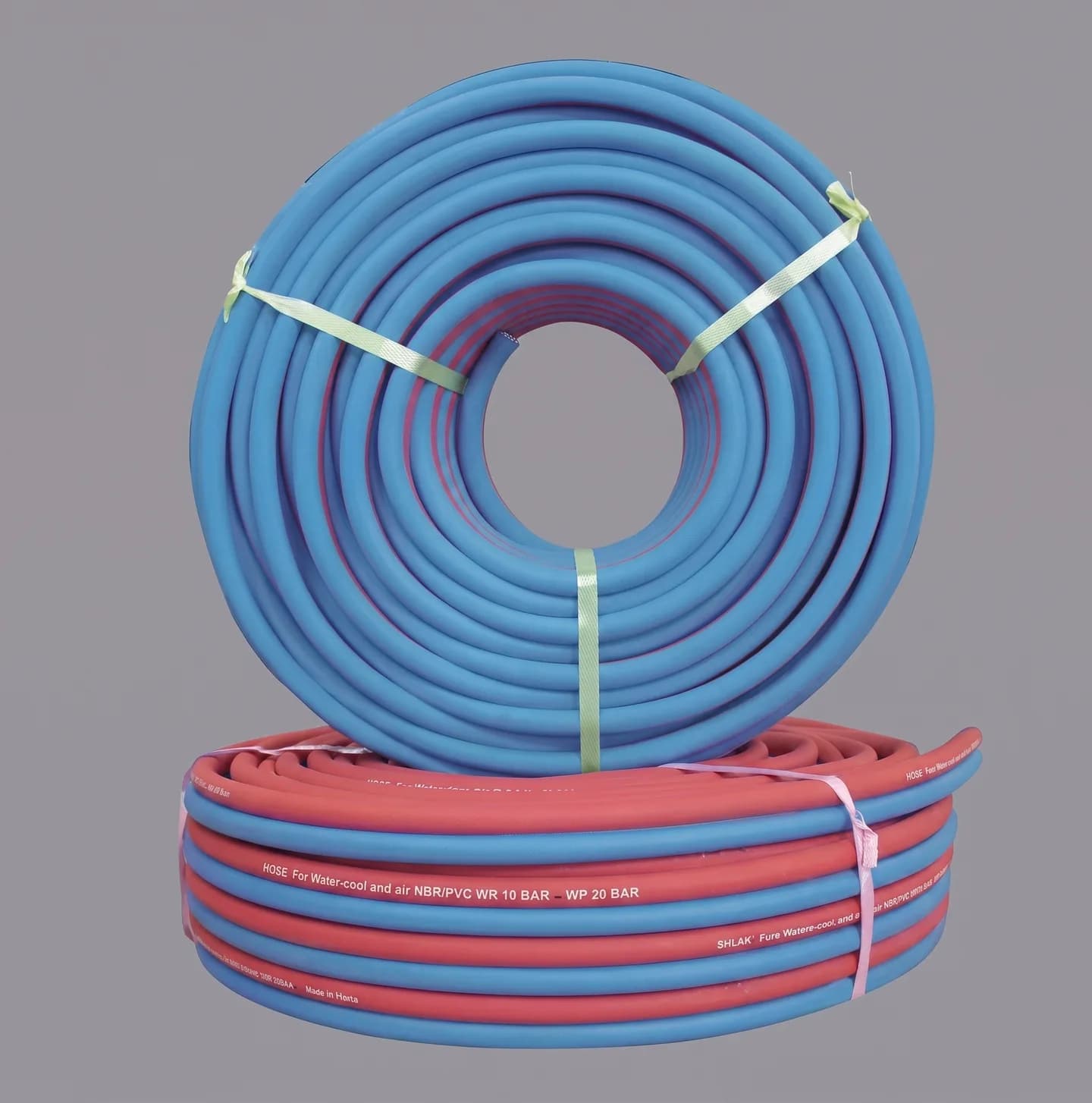

Using high-quality materials, the product is soft and elastic, non-toxic.Hightemperature resistance, water pressure resistance, and long service life.
-5°C~80°C
Dimensions, pressure, temperature, medium, color, marking, packaging, quantity, and supporting documents.
| Imperial size | Inner diametermm | Outer diametermm | Lengthm/roll | Working pressure at 23°CMPa | Burst pressure at 23°CMPa | Weightkg/roll | Packing outer diametermm | Packing heightmm | Volumem³ |
|---|---|---|---|---|---|---|---|---|---|
| 13/64 | 5 | 10 | 100 | 3 | 12 | 10 | 385 | 140 | 0.021 |
| 1/4 | 6 | 12 | 100 | 3 | 12 | 11 | 400 | 155 | 0.025 |
| 5/16 | 8 | 14 | 28 | 3 | 12 | 4 | 325 | 95 | 0.010 |
| 13/32 | 10 | 16 | 28 | 3 | 12 | 4.6 | 350 | 110 | 0.013 |
| 1/2 | 13 | 19 | 50 | 3 | 12 | 13 | 440 | 180 | 0.035 |
| 5/8 | 16 | 24 | 50 | 2.5 | 10 | 17 | 480 | 210 | 0.048 |
| 3/4 | 19 | 27 | 50 | 2 | 8 | 25 | 530 | 240 | 0.067 |
| 1 | 25 | 34 | 50 | 2 | 6 | 32 | 680 | 220 | 0.102 |
Automated notifications use email only. WhatsApp and WeChat are public contact options.
Send the application, medium, dimensions, working pressure, temperature and quantity. Include a product name or link if you have a candidate.
