PVC FIBER REINFORCED HOSE (FDA GRADE)

Name: PVC FIBER REINFORCED HOSE (FDA GRADE)
Brand: VENTURE
SKU: PVC-HOSE-019

This product is suitable for transporting food such as drinking water, milk, and alcohol. -

Reference content from the current catalog. Final specifications and compliance claims must be confirmed before ordering.

Applications

This product is suitable for transporting food such as drinking water, milk, and alcohol. -

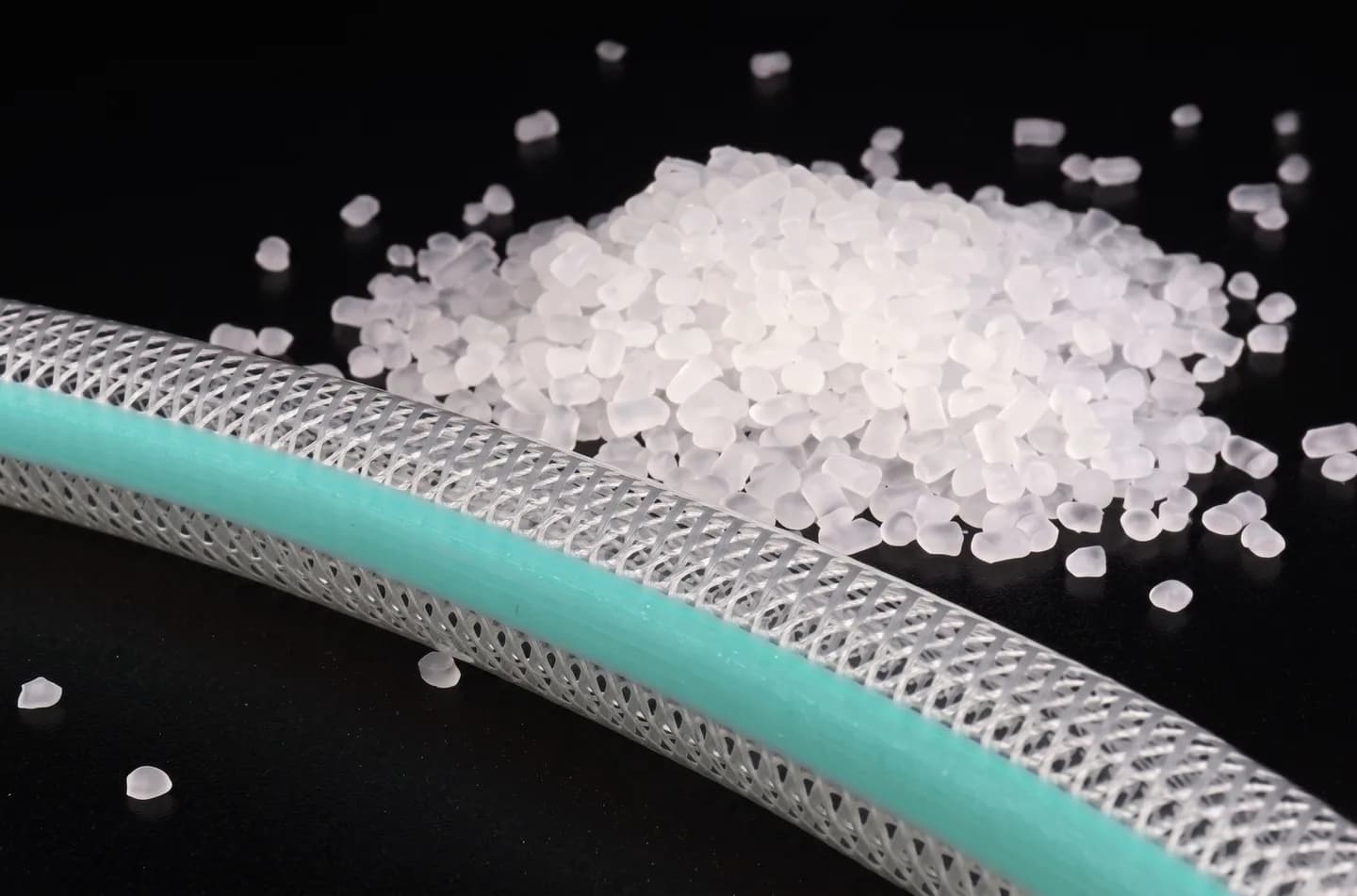

This product is made of food grade PVC material, free ofphthalates and heavy metals, non-toxic, odorless,lightweight, and soft.

-5°C~65°C

Dimensions, pressure, temperature, medium, color, marking, packaging, quantity, and supporting documents.

PVC FIBER REINFORCED HOSE (FDA GRADE)

Imperial size	Inner diametermm	Outer diametermm	Lengthm/roll	Working pressure at 23°CMPa	Burst pressure at 23°CMPa	Weightkg/roll	Packing outer diametermm	Packing heightmm	Volumem³
1/4	6	10	148	1.2	3.6	10	420	135	0.025
5/16	8	12	118	1.2	3.6	10	440	150	0.029
3/8	9	13	108	1.1	3.5	10	430	150	0.027
1/2	12	16	169	0.8	2.4	20	560	180	0.056
5/8	16	20	131	0.7	2.1	20	580	220	0.074
3/4	19	25	72	0.8	2.5	20	580	210	0.07
1	25	30	69	0.5	1.5	20	640	230	0.094
1	25	31	56	0.6	1.8	20	650	220	0.093
1-1/4	32	39	57	0.5	1.5	30	770	230	0.136
2	50	58	55	0.4	1.2	50	980	240	0.23
3	75	90	20	0.5	1.5	50	108	300	0.35
