Used for transporting food such as drinking water, alcohol, jam, milk, etc.
Used for transporting food such as drinking water, alcohol, jam, milk, etc.

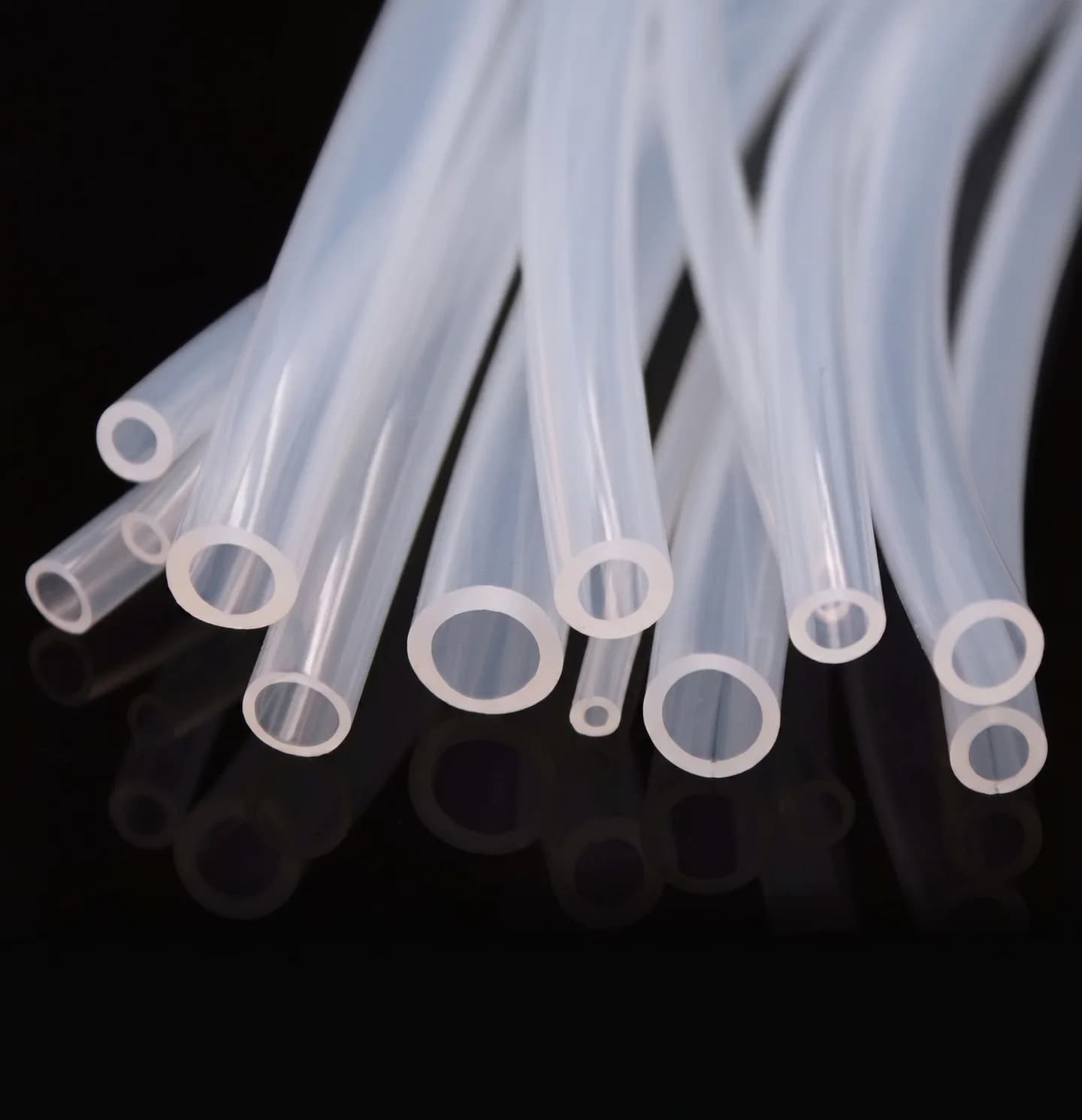

This product is processed from special raw materials and does not contain phthalates.It is non-toxic, odorless, highly transparent, and easy to see the liquid flow inside the tube. It is soft and lightweight.
-5°C~65°C
Dimensions, pressure, temperature, medium, color, marking, packaging, quantity, and supporting documents.
| Imperial size | Inner diametermm | Outer diametermm | Lengthm/roll | Working pressure at 23°CMPa | Burst pressure at 23°CMPa | Weightkg/roll | Packing outer diametermm | Packing heightmm | Volumem³ |
|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 6 | 8 | 100 | 0.5 | 1.5 | 3 | 305 | 130 | 0.012 |
| 5/16 | 8 | 10 | 100 | 0.5 | 1.5 | 3.8 | 335 | 135 | 0.017 |
| 3/8 | 10 | 12 | 100 | 0.5 | 1.5 | 4.6 | 430 | 150 | 0.027 |
| 1/2 | 12 | 15 | 50 | 0.3 | 1 | 4.3 | 420 | 120 | 0.021 |
| 5/8 | 15 | 18 | 50 | 0.3 | 1 | 5.2 | 420 | 130 | 0.029 |
| 3/4 | 19 | 22 | 50 | 0.3 | 1 | 6.5 | 560 | 150 | 0.047 |
| 1 | 25 | 30 | 50 | 0.3 | 0.9 | 17.8 | 660 | 160 | 0.07 |
Automated notifications use email only. WhatsApp and WeChat are public contact options.
Send the application, medium, dimensions, working pressure, temperature and quantity. Include a product name or link if you have a candidate.
