It is suitable for pneumatic devices, high-pressure washing devices, cropsprayers, air compressors, engine accessories, especially for high-pressure spray.
It is suitable for pneumatic devices, high-pressure washing devices, cropsprayers, air compressors, engine accessories, especially for high-pressure spray.

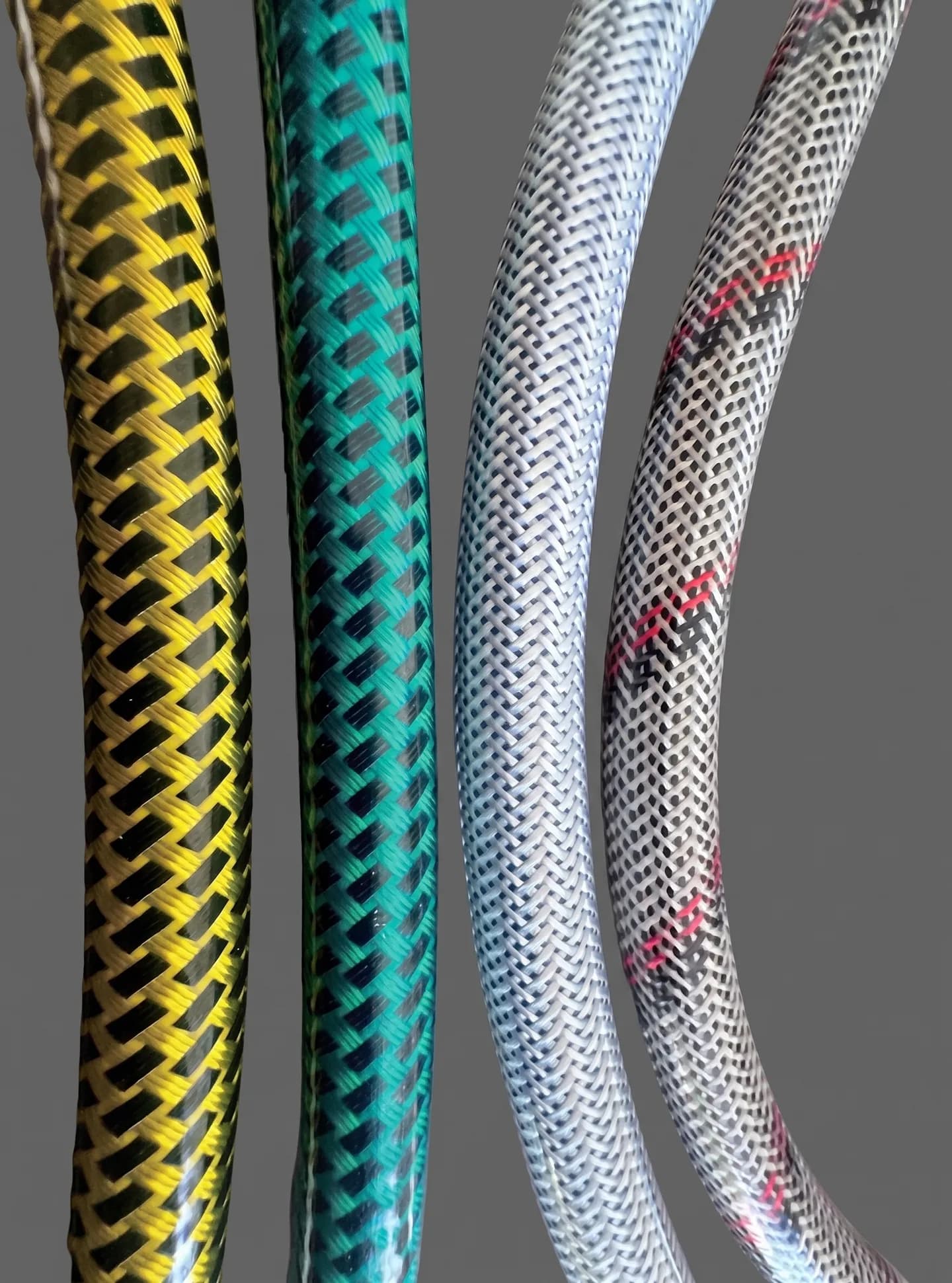

Made of highly resilient PVC material and high-strength tensile polyesterreinforced thread weaving, it is pressure resistant, wear-resistant, antifreezing all year round, and not hard in winter.
-5°C~65°C
Dimensions, pressure, temperature, medium, color, marking, packaging, quantity, and supporting documents.
| Imperial size | Inner diametermm | Outer diametermm | Lengthm/roll | Working pressure at 23°CMPa | Burst pressure at 23°CMPa | Weightkg/roll | Packing outer diametermm | Packing heightmm | Volumem³ |
|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 6.5 | 12 | 100 | 4.5 | 18 | 10.5 | 420 | 130 | 0.023 |
| 9/32 | 7.5 | 13 | 100 | 4.5 | 18 | 11.9 | 450 | 160 | 0.032 |
| 5/16 | 8.5 | 14 | 100 | 4.5 | 18 | 13 | 4660 | 160 | 0.033 |
| 3/8 | 10 | 16 | 100 | 4.0 | 16 | 16.5 | 480 | 180 | 0.041 |
| 1/2 | 13 | 19 | 100 | 3.7 | 15 | 20.3 | 570 | 200 | 0.065 |
Automated notifications use email only. WhatsApp and WeChat are public contact options.
Send the application, medium, dimensions, working pressure, temperature and quantity. Include a product name or link if you have a candidate.
