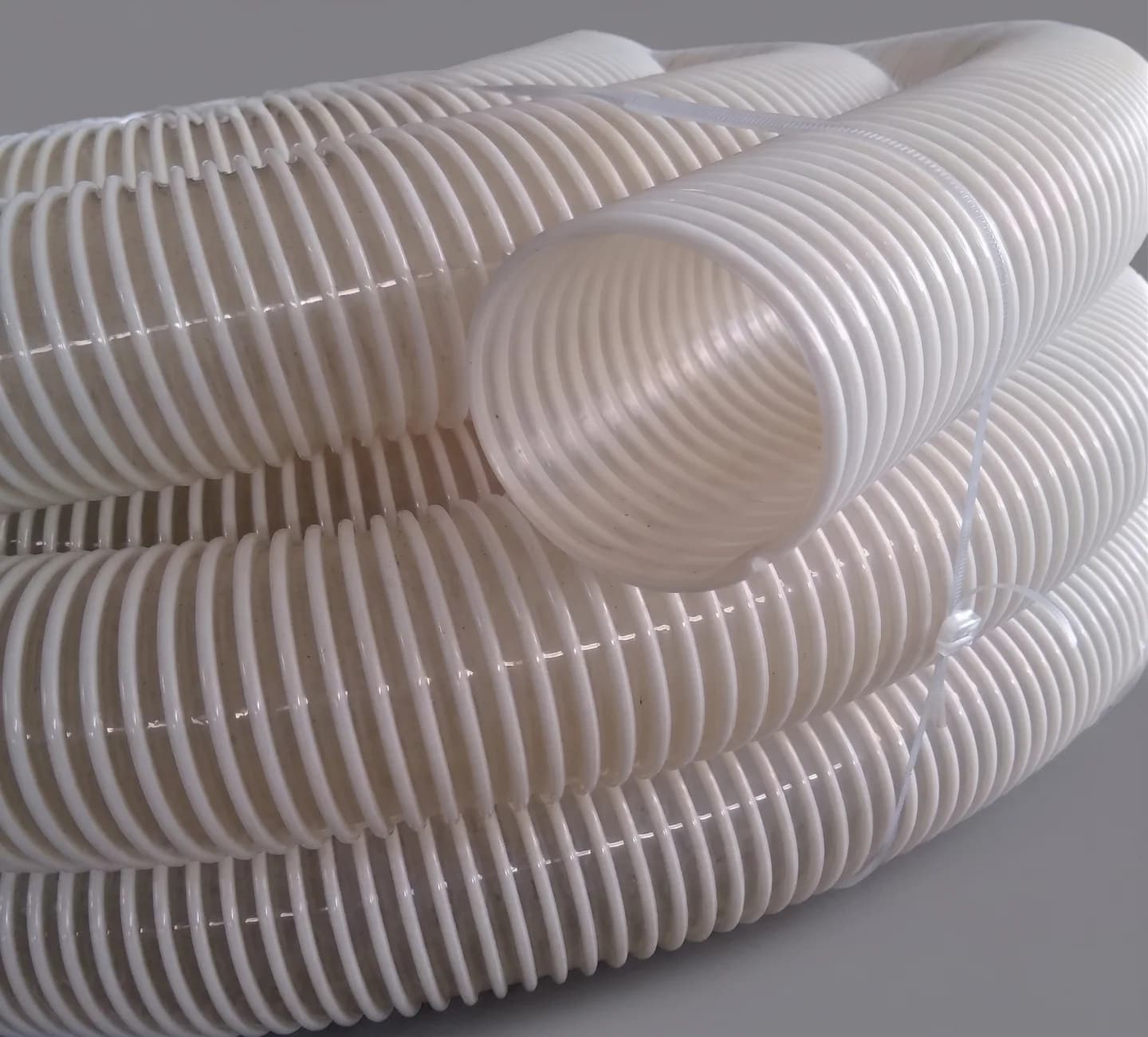

PVC HIGH/LOW TEMPERATURE RESISTANT PLASTIC REINFORCED SPIRAL HOSE

Name: PVC HIGH/LOW TEMPERATURE RESISTANT PLASTIC REINFORCED SPIRAL HOSE
Brand: VENTURE
SKU: PVC-HOSE-021

particles, and This product is suitable for vacuum suction of powders, agriculture, transportation of liquids such as water and oil in industry, water conservancy, and civil engineering. It is an excellent substitute for metal tubes..

Reference content from the current catalog. Final specifications and compliance claims must be confirmed before ordering.

Applications

Characteristics

Lightweight, elastic, resistant to negative pressure, and weather resistant.

Working temperature

5°C~ 100°C

Order confirmation

Dimensions, pressure, temperature, medium, color, marking, packaging, quantity, and supporting documents.

Back to products

PVC HIGH/LOW TEMPERATURE RESISTANT PLASTIC REINFORCED SPIRAL HOSE

Product specifications

Imperial size	Inner diametermm	Outer diametermm	Lengthm/roll	Working pressure at 23°CMPa	Burst pressure at 23°CMPa	Packing outer diametermm	Packing heightmm	Volumem³
5/8	16	21	50	-0.1–0.4	1.0	600	230	0.083
3/4	19	25	50	-0.1–0.4	1.0	610	160	0.060
1	25	32	50	-0.1–0.6	2.0	660	200	0.087
1-1/2	38	46	50	-0.1–0.6	1.8	730	340	0.181
2	51	60	50	-0.1–0.6	1.8	900	320	0.26
3	76	86	20	-0.1–0.4	1.2	560	150	0.29
4	102	113	20	-0.1–0.3	1.0	660	160	0.54
5	127	139	20	-0.1–0.3	1.0	1250	600	0.94
6	152	166	20	-0.1–0.3	1.0	1400	680	1.33
