This product is widely used for crop irrigation and supporting industrial and mining enterprises.
Reference content from the current catalog. Final specifications and compliance claims must be confirmed before ordering.
This product is widely used for crop irrigation and supporting industrial and mining enterprises.

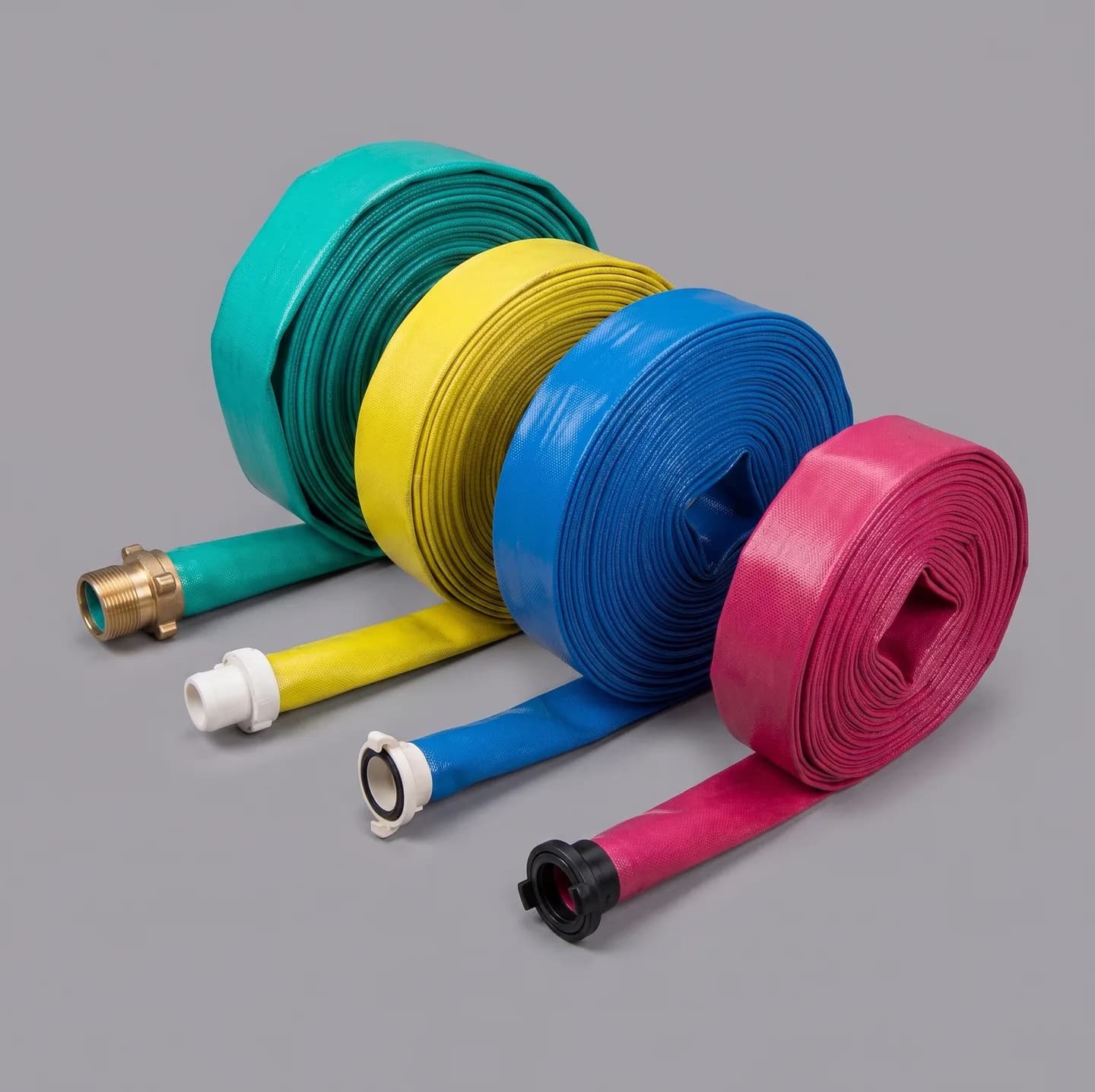

This product is formed by fiber-reinforced double-sided directional cross winding and then coated with plastic in one step.The product has the characteristics of fracture resistance, high pressure resistance, and low expansion rate. Increased radial fibers and improved tensile strength.
-5°C~65°C
Dimensions, pressure, temperature, medium, color, marking, packaging, quantity, and supporting documents.
| Imperial size | Inner diametermm | Wall thicknessmm | Lengthm/roll | Working pressure at 23°CMPa | Burst pressure at 23°CMPa | Weightkg/roll |
|---|---|---|---|---|---|---|
| 3/4 | 20 | 1.35 | 100 | 6 | 21 | 11 |
| 1 | 25 | 1.3 | 100 | 6 | 21 | 16 |
| 1-1/2 | 40 | 1.4 | 100 | 6 | 18 | 22.5 |
| 2 | 51 | 1.35 | 100 | 6 | 18 | 30 |
| 3 | 76 | 1.5 | 100 | 6.0 | 18 | 50 |
| 4 | 103 | 1.9 | 100 | 6 | 18 | 80 |
| 5 | 127 | 2 | 100 | 6 | 18 | 108 |
| 6 | 153 | 2.4 | 100 | 6 | 18 | 160 |
| 8 | 203 | 2.6 | 100 | 6 | 15 | 220 |
