This product is used for conveying general work pressurein fields such as agriculture, civil engineering, fisheries,aquaculture, and garden irrigation.
This product is used for conveying general work pressurein fields such as agriculture, civil engineering, fisheries,aquaculture, and garden irrigation.

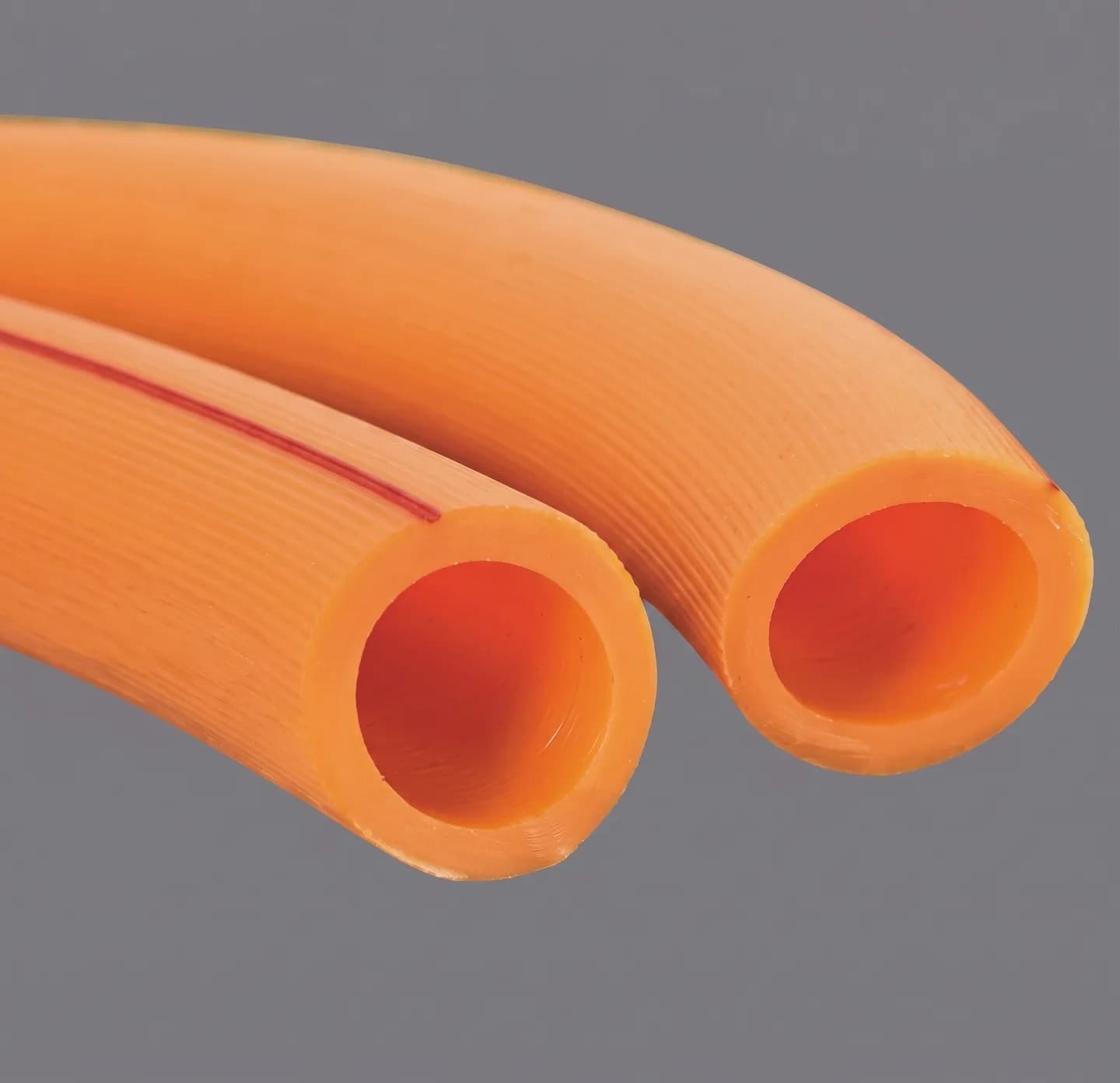

This product is made of polymer material, which is soft and elastic.
-10°C ~ 65°C
Dimensions, pressure, temperature, medium, color, marking, packaging, quantity, and supporting documents.
| Imperial size | Inner diametermm | Outer diametermm | Lengthm/roll | Working pressure at 23°CMPa | Burst pressure at 23°CMPa | Weightkg/roll | Packing outer diametermm | Packing heightmm | Volumem³ |
|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 6 | 8 | 100 | 0.5 | 1.5 | 3 | 305 | 130 | 0.012 |
| 5/16 | 8 | 10 | 100 | 0.5 | 1.5 | 3.8 | 335 | 135 | 0.017 |
| 3/8 | 10 | 12 | 100 | 0.5 | 1.5 | 4.6 | 430 | 150 | 0.027 |
| 1/2 | 12 | 15 | 50 | 0.3 | 1 | 4.3 | 420 | 120 | 0.021 |
| 5/8 | 15 | 18 | 50 | 0.3 | 1 | 5.2 | 420 | 130 | 0.029 |
| 3/4 | 19 | 22 | 50 | 0.3 | 1 | 6.5 | 560 | 150 | 0.047 |
| 1 | 25 | 30 | 50 | 0.3 | 0.9 | 17.8 | 660 | 160 | 0.07 |
