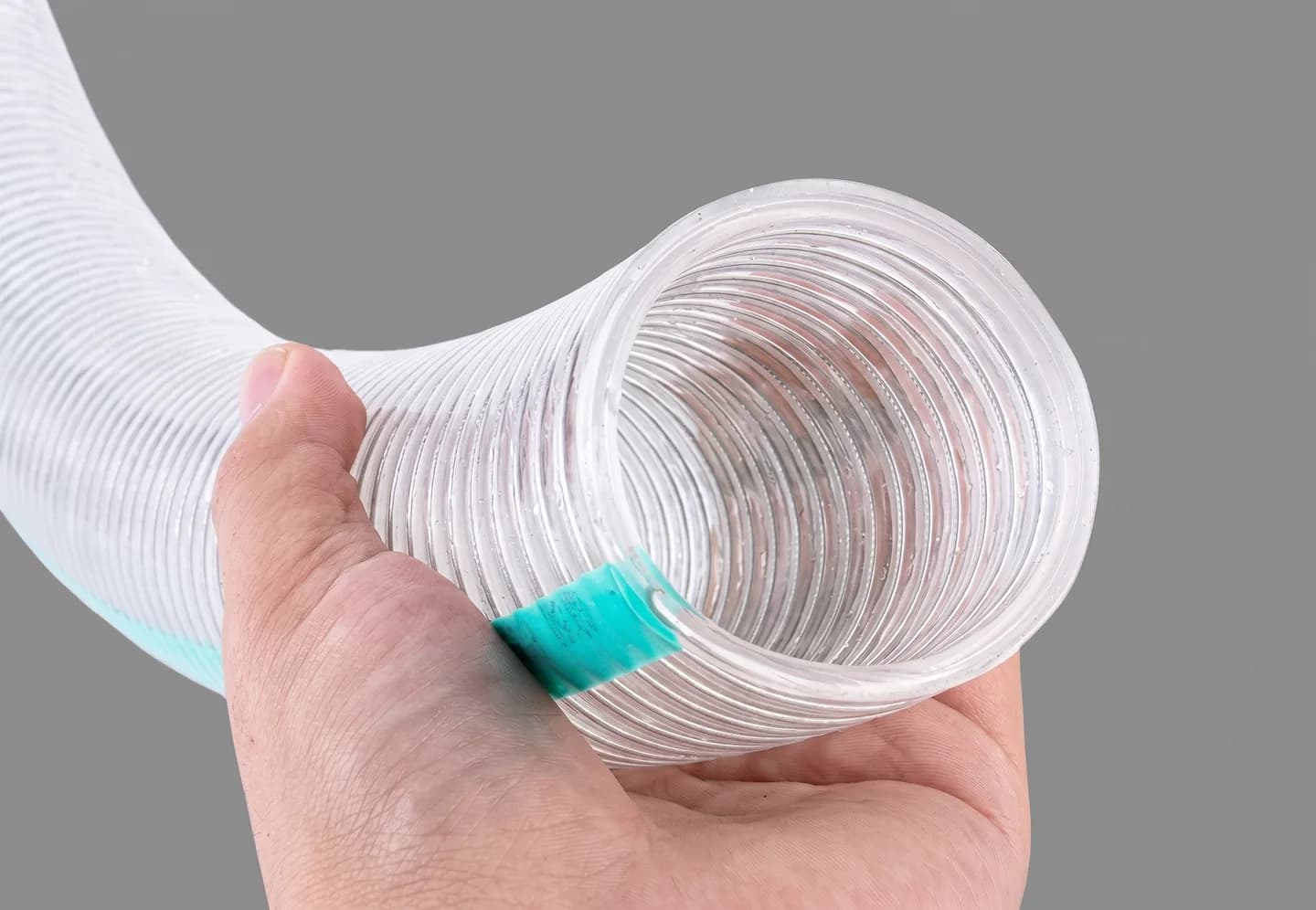

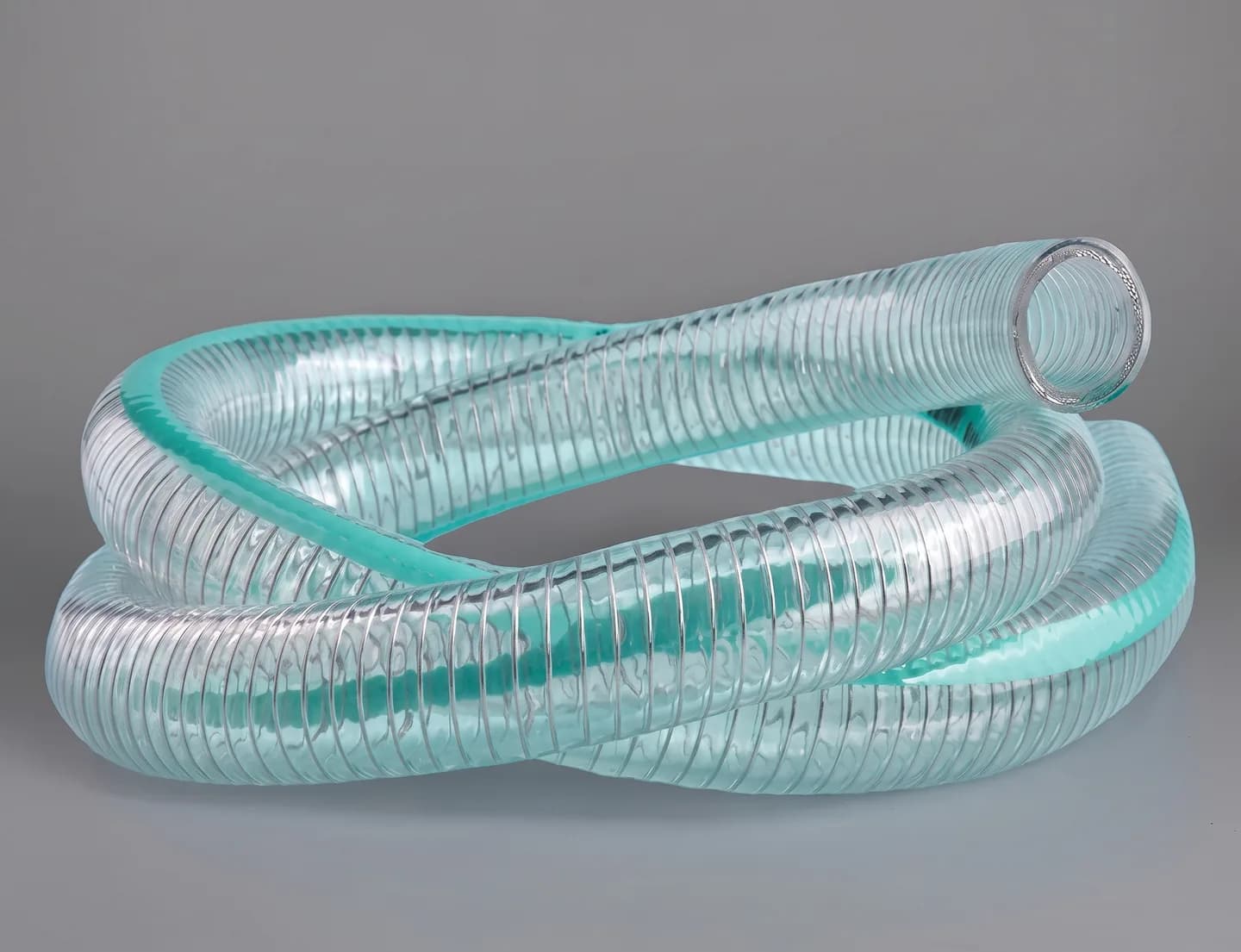

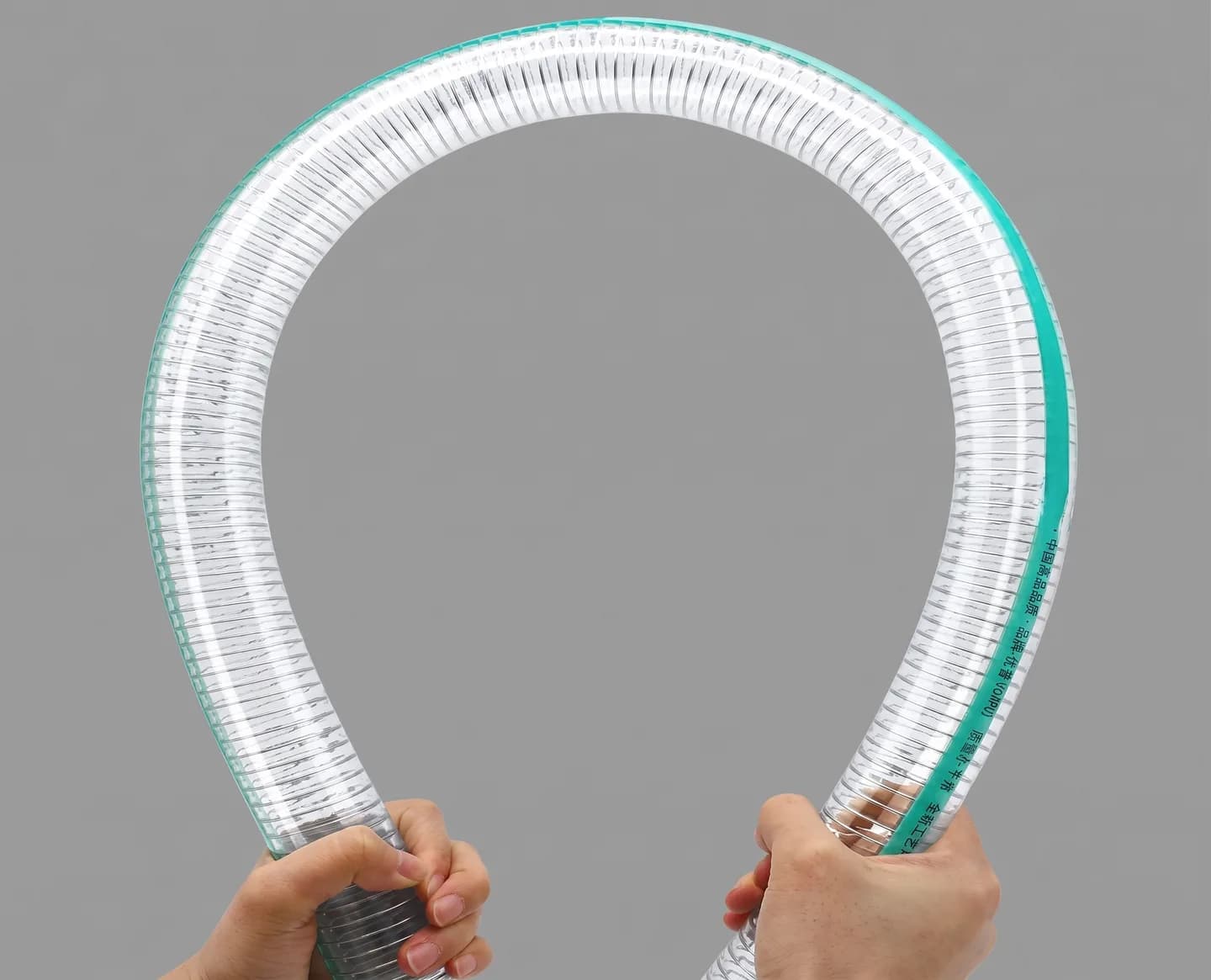

STEEL WIRE REINFORECED PVC HOSE (FDA GRADE)

Name: STEEL WIRE REINFORECED PVC HOSE (FDA GRADE)
Brand: VENTURE
SKU: PVC-HOSE-010

edible oil, alcohol, beverages, etc. This product is used for transporting drinking water, milk,

Reference content from the current catalog. Final specifications and compliance claims must be confirmed before ordering.

Applications

edible oil, alcohol, beverages, etc. This product is used for transporting drinking water, milk,

This product is made of food graderaw materials, with thickened pipe wall, good flexibility, noodor, anti-aging, and soft all the year round.

-15°C~ 100°C

Dimensions, pressure, temperature, medium, color, marking, packaging, quantity, and supporting documents.

STEEL WIRE REINFORECED PVC HOSE (FDA GRADE)

Imperial size	Inner diametermm	Outer diametermm	Lengthm/roll	Working pressure at 23°CMPa	Burst pressure at 23°CMPa	Weightkg/roll	Packing outer diametermm	Packing heightmm	Volumem³
5/16	8	13	100	-0.1–1.1	3.3	13	400	200	0.032
3/8	9	15	100	-0.1–1.1	3.3	18	480	180	0.041
1/2	12	18	100	-0.1–1.0	3.0	22.6	540	180	0.052
5/8	15	22	100	-0.1–1.0	3	32	600	235	0.084
3/4	19	26	50	-0.1–1.0	3	19.6	610	160	0.061
1	25	33	50	-0.1–0.7	2.5	29	660	220	0.1
1-1/4	32	41	40	-0.1–0.7	2.0	33	750	250	0.141
1-1/2	38	48	40	-0.1–0.6	1.8	41	740	300	0.164
1-3/4	45	56	40	-0.1–0.6	1.7	54	850	290	0.21
2	50	62	40	-0.1–0.5	1.6	63	930	340	0.3
3	75	92	20	-0.1–0.4	1.3	67	1020	280	0.3
3-1/2	90	108	20	-0.1–0.4	1.2	85	1100	440	0.532
4	100	118	20	-0.1–0.3	1	93	1150	360	0.475
