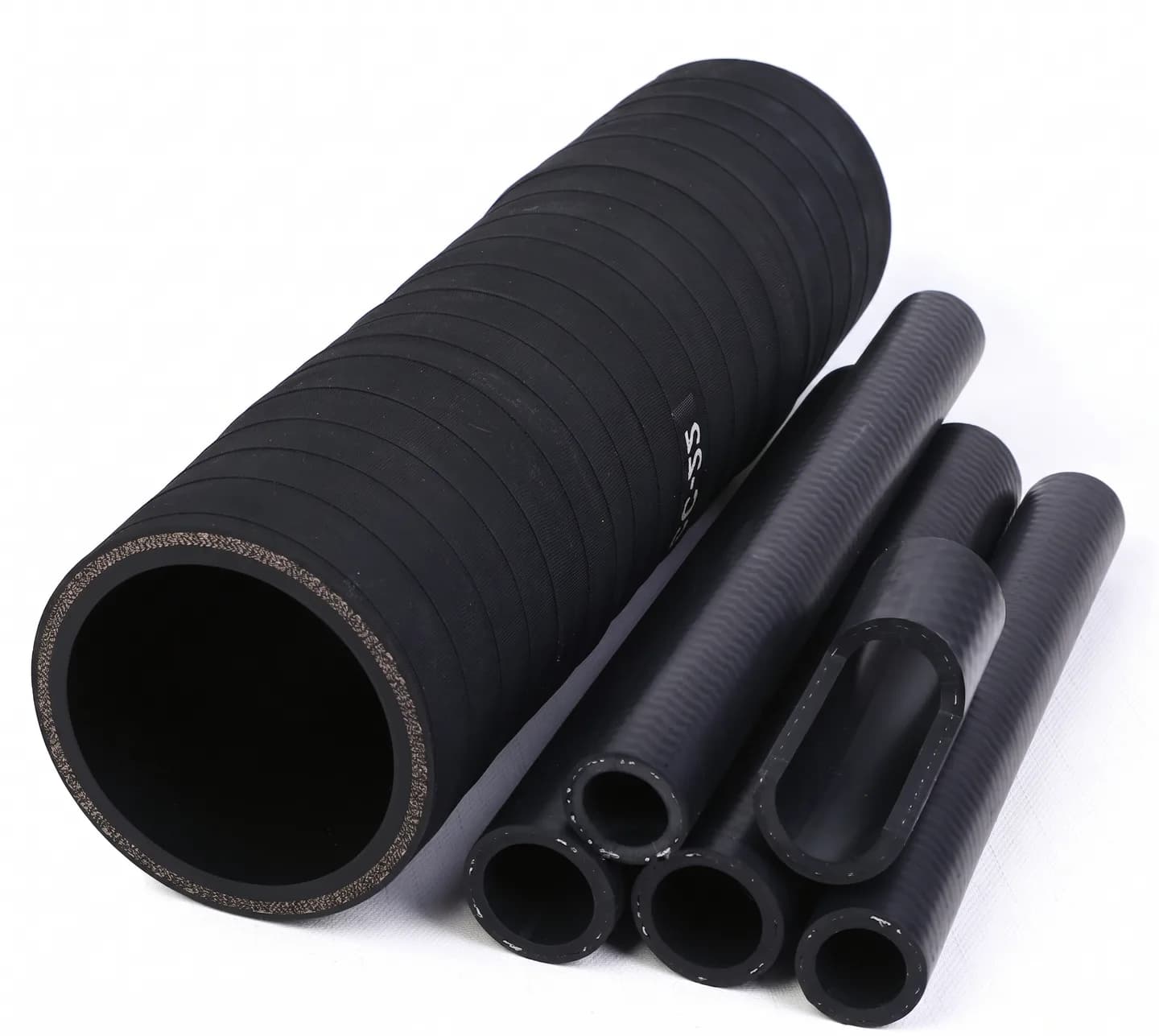

EPDM Rubber Hose

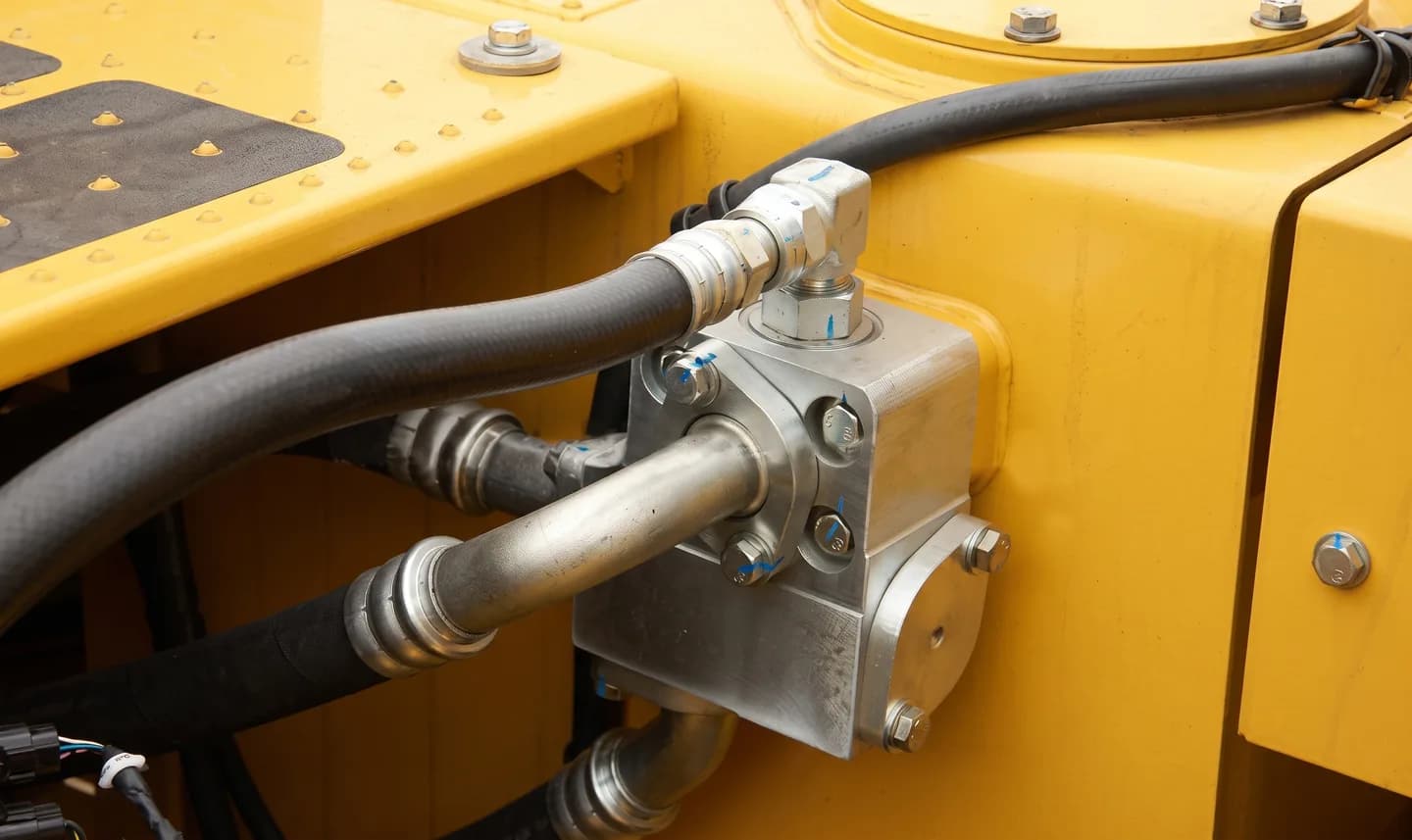

This product is widely used in automotive, mechanical equipment, engine cooling systems, radiators, and heater systems – for conveying water, air, antifreeze, steam, and mild acidic/alkaline liquids. Also known as EPDM rubber hose, radiator hose, heater hose, air filter hose, and low-pressure air hose.

Applications

Characteristics

Made from imported EPDM raw rubber (over 45% content) with polyester yarn, cotton yarn, or canvas reinforcement – offering excellent ozone resistance, aging resistance, chemical resistance, and superior air tightness. Three construction types available: smooth with braided cord, fabric‑textured with fabric reinforcement, and smooth solid wall. Manufactured by manual winding or machine extrusion/braiding processes. Hardness: 70±5A. Burst pressure: 2MPa. Long service life up to 10 years.

Working temperature

-30°C ~ 120°C (Compliant with standard HG/T2491-2009)

Order confirmation

Dimensions, pressure, temperature, medium, color, marking, packaging, quantity, and supporting documents.

Back to products

EPDM Rubber Hose

Product specifications

Part number	Inner diametermm	Outer diametermm	Wall thicknessmm	Lengthm	Working pressureMPa
5	5	9	2.0	20	0.6 / 1.0
6	6	12	3.0	20	0.6 / 1.0
6	6	13	3.5	20	0.6 / 1.0
6	6	14	4.0	20	0.6 / 1.0
6	6	16	5.0	20	0.6 / 1.0
6	6	17	5.5	20	0.6 / 1.0
7	7	13	3.0	20	0.6 / 1.0
7	7	14	3.5	20	0.6 / 1.0
7	7	15	4.0	20	0.6 / 1.0
7	7	16	4.5	20	0.6 / 1.0
7	7	17	5.0	20	0.6 / 1.0
8	8	12	2.0	20	0.6 / 1.0
8	8	13	2.5	20	0.6 / 1.0
8	8	14	3.0	20	0.6 / 1.0
8	8	15	3.5	20	0.6 / 1.0
8	8	16	4.0	20	0.6 / 1.0
8	8	17	4.5	20	0.6 / 1.0
8	8	18	5.0	20	0.6 / 1.0
9	9	14	2.5	20	0.6 / 1.0
9	9	16	3.5	20	0.6 / 1.0
9	9	17	4.0	20	0.6 / 1.0
9	9	18	4.5	20	0.6 / 1.0
10	10	14	2.0	20	0.6 / 1.0
10	10	16	3.0	20	0.6 / 1.0
10	10	17	3.5	20	0.6 / 1.0
10	10	18	4.0	20	0.6 / 1.0
10	10	20	5.0	20	0.6 / 1.0
11	11	19	4.0	20	0.6 / 1.0
11	11	21	5.0	20	0.6 / 1.0
12	12	20	4.0	20	0.6 / 1.0
13	13	20	3.5	20	0.6 / 1.0
13	13	21	4.0	20	0.6 / 1.0
13	13	22	4.5	20	0.6 / 1.0
14	14	22	4.0	20	0.6 / 1.0
15	15	23	4.0	20	0.6 / 1.0
16	16	22	3.0	20	0.6 / 1.0
16	16	23	3.5	20	0.6 / 1.0
16	16	26	5.0	20	0.6 / 1.0
18	18	26	4.0	20	0.6 / 1.0
18	18	28	5.0	20	0.6 / 1.0
19	19	27	5.5	20	0.6 / 1.0
20	20	28	4.0	20	0.6 / 1.0
20	20	30	5.0	20	0.6 / 1.0
