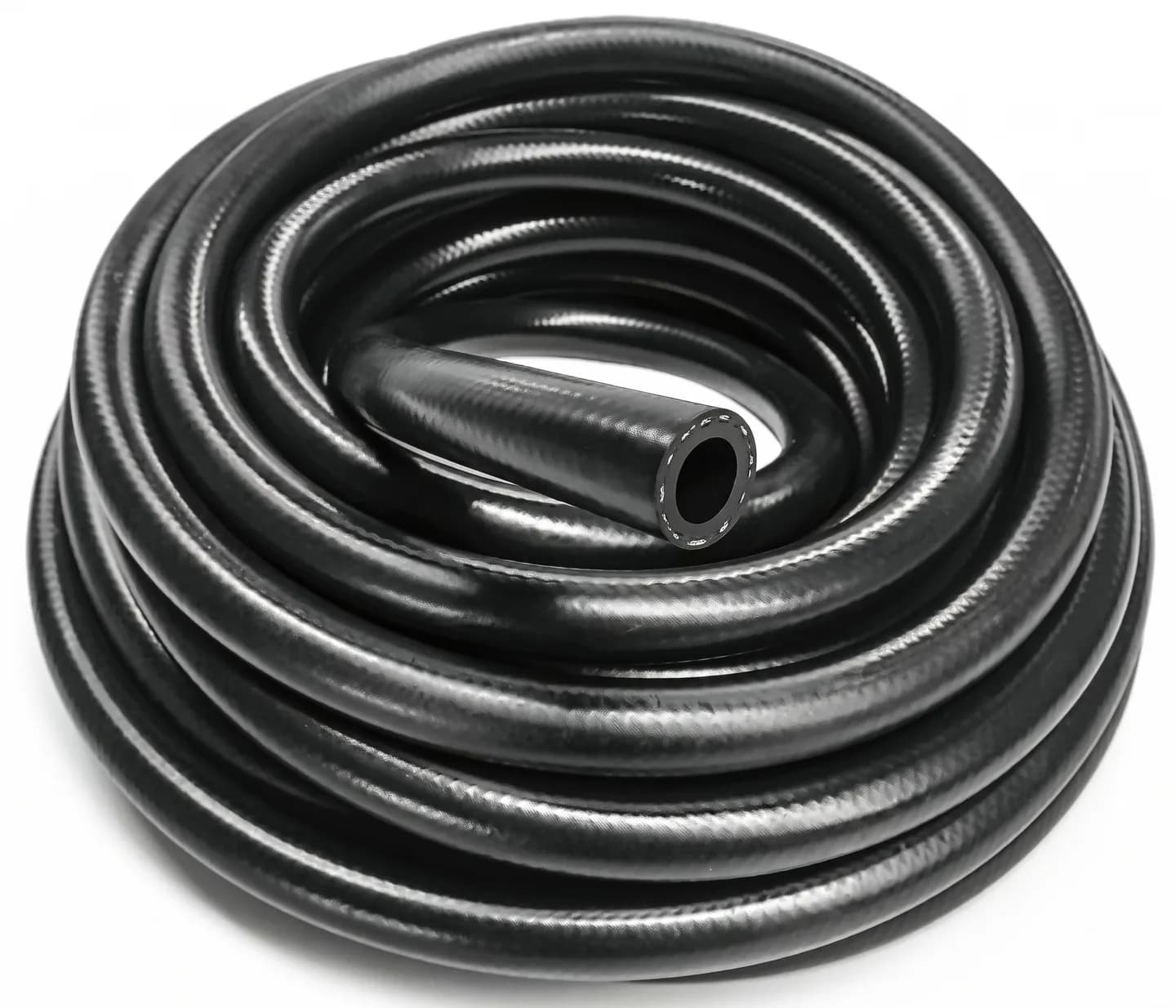

NBR rubber hose

Name: NBR rubber hose
Brand: VENTURE
SKU: VENTURE-RUBBER-010

This product is widely used in automotive and mechanical engine systems, fuel tanks, and oil return lines – for low‑pressure transfer of diesel, gasoline, engine oil, hydraulic oil, lubricating oil, and other oil-based media. Excellent oil resistance. Also known as NBR rubber hose, engine oil hose, fuel inlet hose, oil return hose, oil-resistant hose, diesel hose, and gasoline hose.

Reference content from the current catalog. Final specifications and compliance claims must be confirmed before ordering.

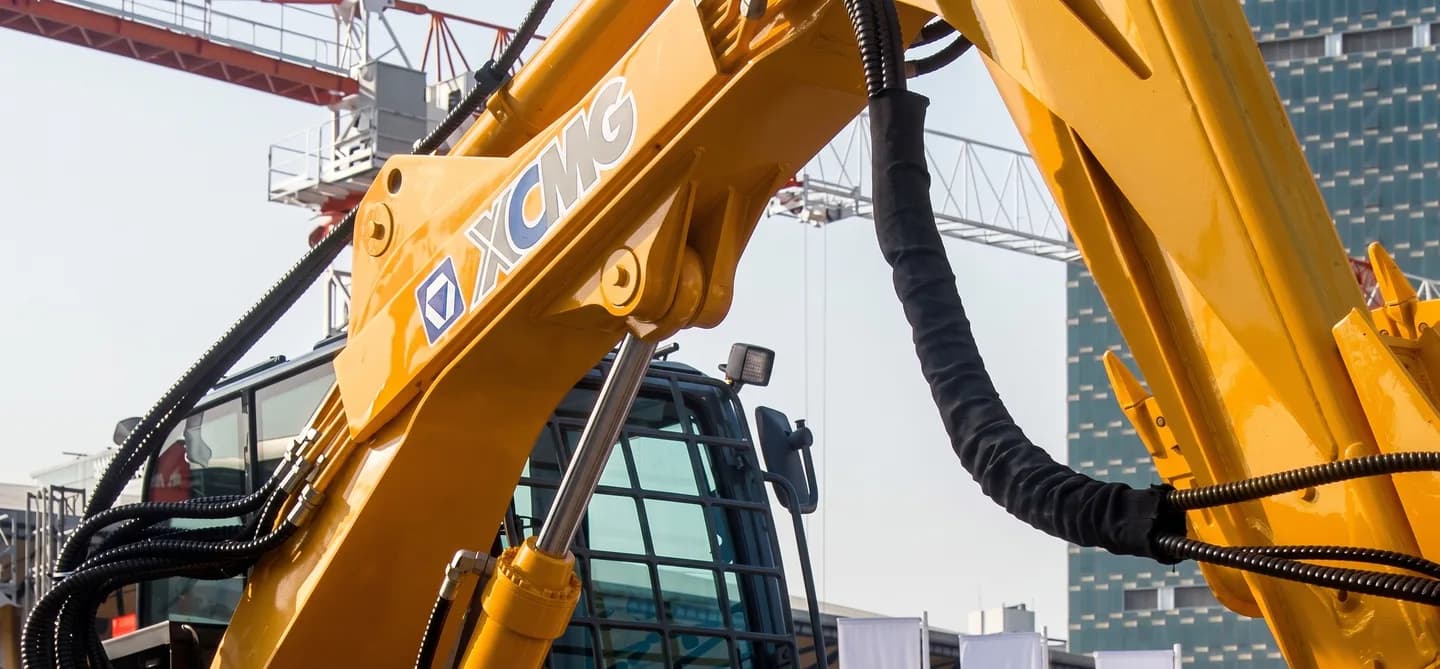

Applications

Characteristics

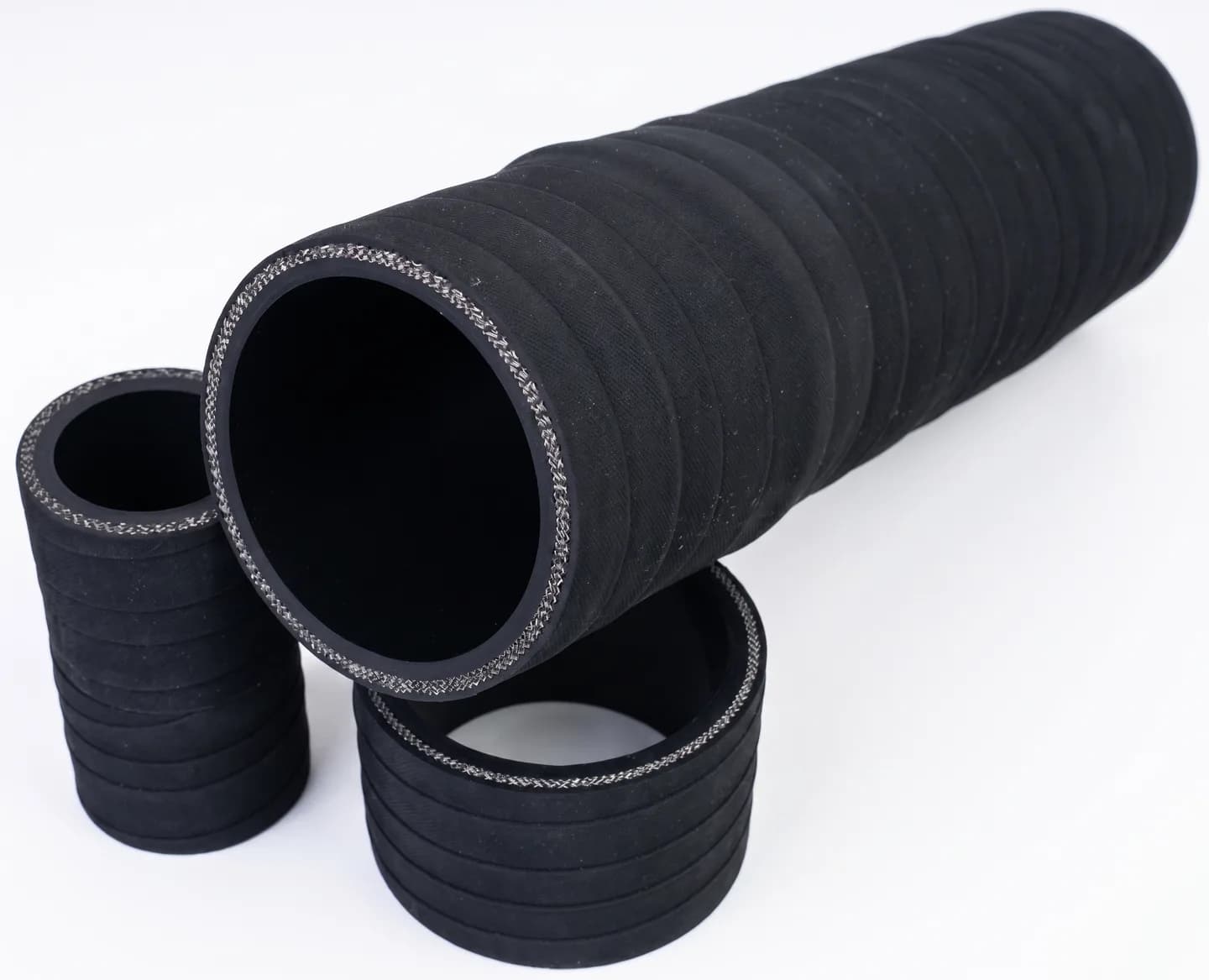

Made from Nantex NBR rubber (30% imported raw material content) with polyester yarn, cotton yarn, or canvas reinforcement – offering outstanding resistance to diesel and gasoline, stable quality, and significantly extended service life (3‑4 times longer than conventional hoses). Three construction types available: fabric‑textured with fabric reinforcement, smooth with braided cord, and smooth solid wall. Manufactured by manual winding or machine extrusion/braiding processes. Hardness: 70±5A. Burst pressure: 2MPa.

Working temperature

-30°C ~ 120°C (Compliant with standard JB/T8406-2008)

Order confirmation

Dimensions, pressure, temperature, medium, color, marking, packaging, quantity, and supporting documents.

Back to products

NBR rubber hose

Product specifications

Part number	Inner diametermm	Outer diametermm	Wall thicknessmm	Lengthm	Working pressureMPa
6	6	12	3.0	20	0.6 / 1.0
6	6	13	3.5	20	0.6 / 1.0
6	6	14	4.0	20	0.6 / 1.0
6	6	16	5.0	20	0.6 / 1.0
6	6	17	5.5	20	0.6 / 1.0
7	7	13	3.0	20	0.6 / 1.0
7	7	14	3.5	20	0.6 / 1.0
7	7	15	4.0	20	0.6 / 1.0
7	7	16	4.5	20	0.6 / 1.0
7	7	17	5.0	20	0.6 / 1.0
8	8	12	2.0	20	0.6 / 1.0
8	8	13	2.5	20	0.6 / 1.0
8	8	14	3.0	20	0.6 / 1.0
8	8	15	3.5	20	0.6 / 1.0
8	8	16	4.0	20	0.6 / 1.0
8	8	17	4.5	20	0.6 / 1.0
8	8	18	5.0	20	0.6 / 1.0
9	9	14	2.5	20	0.6 / 1.0
9	9	16	3.5	20	0.6 / 1.0
9	9	17	4.0	20	0.6 / 1.0
9	9	18	4.5	20	0.6 / 1.0
10	10	14	2.0	20	0.6 / 1.0
10	10	16	3.0	20	0.6 / 1.0
10	10	17	3.5	20	0.6 / 1.0
10	10	18	4.0	20	0.6 / 1.0
10	10	20	5.0	20	0.6 / 1.0
11	11	19	4.0	20	0.6 / 1.0
11	11	21	5.0	20	0.6 / 1.0
12	12	20	4.0	20	0.6 / 1.0
13	13	20	3.5	20	0.6 / 1.0
13	13	21	4.0	20	0.6 / 1.0
13	13	22	4.5	20	0.6 / 1.0
14	14	22	4.0	20	0.6 / 1.0
15	15	23	4.0	20	0.6 / 1.0
16	16	22	3.0	20	0.6 / 1.0
16	16	23	3.5	20	0.6 / 1.0
16	16	26	5.0	20	0.6 / 1.0
18	18	26	4.0	20	0.6 / 1.0
18	18	28	5.0	20	0.6 / 1.0
19	19	28	4.5	20	0.6 / 1.0
20	20	28	4.0	20	0.6 / 1.0
20	20	30	5.0	20	0.6 / 1.0
