PTFE Braided Hose

Name: PTFE Braided Hose
Brand: VENTURE
SKU: VENTURE-PTFE-018

This product is widely used in chemical processing – for conveying corrosive chemical media; food processing & pharmaceutical – for high‑purity liquid and semi‑finished material transfer; semiconductor manufacturing – for ultra‑pure water, chemicals, and gases in cleanroom environments; automotive engineering – for cooling systems and fuel systems requiring aging resistance, oil resistance, and high‑temperature flexibility; and laboratory equipment – for fluid transfer and vacuum system connections under demanding conditions.

Reference content from the current catalog. Final specifications and compliance claims must be confirmed before ordering.

Applications

Characteristics

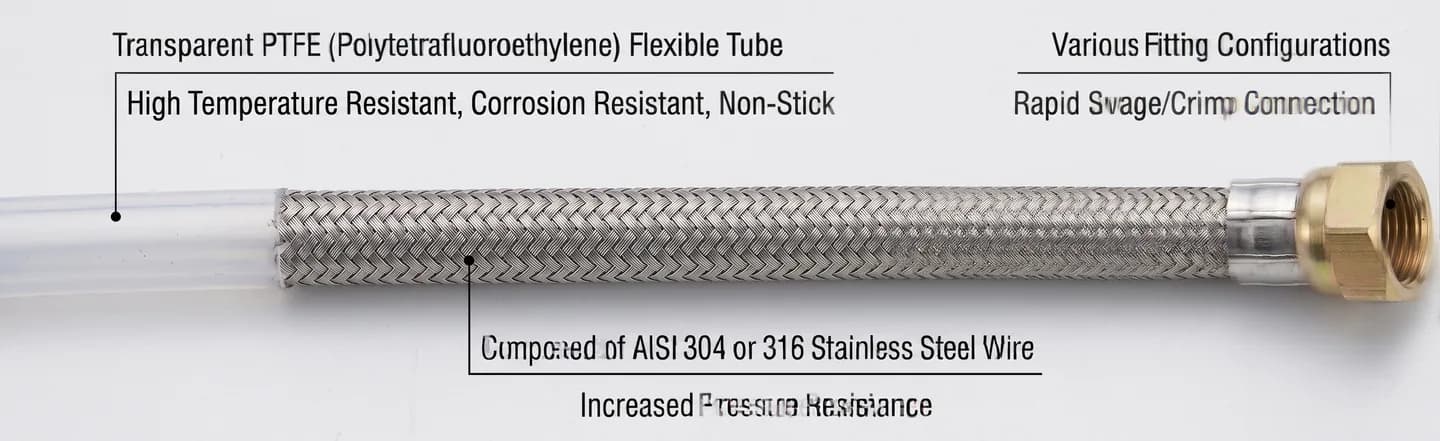

Inner core made from high‑quality PTFE with excellent chemical stability – resistant to strong acids, strong alkalis, and various organic solvents. Features a wide temperature range, good flexibility, and bendability for easy installation in confined spaces. Braided reinforcement layer made from AISI 304 or 316 stainless steel wire provides superior pressure resistance, tensile strength, and abrasion resistance – ensuring long‑term durability in demanding applications.

Working temperature

-80°C ~ +260°C (Inner PTFE layer maintains stable performance across the full temperature range)

Order confirmation

Dimensions, pressure, temperature, medium, color, marking, packaging, quantity, and supporting documents.

Back to products

PTFE Braided Hose

Product specifications

Sizeinch	Inner diametermm	Outer diametermm	Wall thicknessmm	Working pressurekg/cm²	Minimum burst pressurekg/cm²	Minimum bend radiusmm (±3)	Unit weightg/m
1/8	2.85–3.25	5.45–6.15	0.8–1	256	625	70	70
1/4	5.95–6.55	8.45–9.25	0.8–1	232	552	81	110
5/16	7.85–8.45	10.55–11.45	0.8–1	194	540	131	135
3/8	9.65–10.35	12.25–13.15	0.8–1	162	450	182	165
1/2	12.55–13.25	15.85–17.25	1–1.5	139	425	211	230
5/8	15.75–16.35	18.65–20.25	1–1.5	101	385	252	276
3/4	18.65–19.25	22.15–23.45	1–1.5	92	315	323	405
7/8	21.85–25.65	25.85–26.85	1.5	80	240	421	460
1	24.85–28.65	28.85–29.85	1.5	72	200	485	510
