This product is widely used in rubber, furniture, board manufacturing, plastics, clothing, automotive, machine tools, shipbuilding, electrical machinery, diesel engines, papermaking, and other industries – as flexible hose for hydraulic, pneumatic, and steam transfer. Particularly suitable for conveying alternating hot and cold liquids, gases, and highly corrosive media – offering superior performance and longer service life compared to conventional transfer hoses.
This product is widely used in rubber, furniture, board manufacturing, plastics, clothing, automotive, machine tools, shipbuilding, electrical machinery, diesel engines, papermaking, and other industries – as flexible hose for hydraulic, pneumatic, and steam transfer. Particularly suitable for conveying alternating hot and cold liquids, gases, and highly corrosive media – offering superior performance and longer service life compared to conventional transfer hoses.

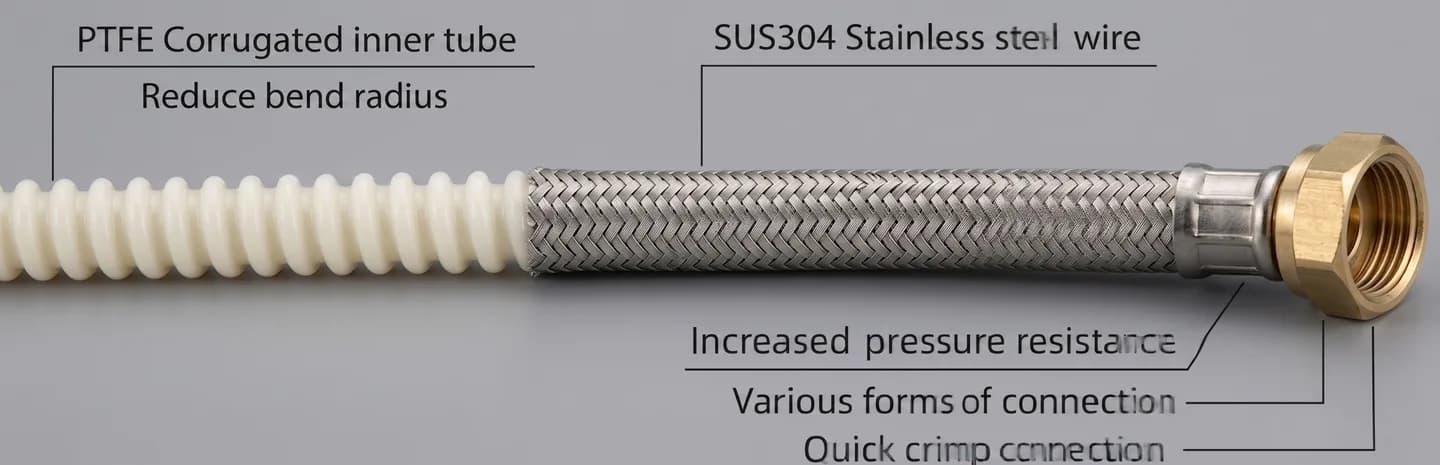

Made from a PTFE inner core with SUS304 stainless steel wire braided reinforcement, fitted with metal end connectors to form a complete hose assembly. Features excellent high‑temperature resistance, pressure resistance, corrosion resistance, non‑stick properties, and long service life. The PTFE inner layer provides exceptional chemical stability and low friction, while the stainless steel braiding reinforces hose strength and pressure resistance. The assembly offers a small bending radius for easy installation in confined spaces. Equipped with various quick‑connect end fittings for versatile application.
Continuous: -50°C ~ +210°C Intermittent: -70°C ~ +260°C
Dimensions, pressure, temperature, medium, color, marking, packaging, quantity, and supporting documents.
| Sizeinch | Inner diametermm | Outer diametermm | Wall thicknessmm | Working pressurekgf/cm² | Minimum burst pressurekgf/cm² | Minimum bend radiusmm (±3) |
|---|---|---|---|---|---|---|
| 1/4 | 5.75–6.55 | 9.85–10.55 | 1 | 151 | 450 | 32 |
| 5/16 | 7.75–8.55 | 12.85–13.15 | 1 | 126 | 370 | 36 |
| 3/8 | 9.14–10.25 | 15.85–16.55 | 1 | 105 | 324 | 59 |
| 1/2 | 12.45–13.25 | 18.45–19.35 | 1 | 90 | 270 | 82 |
| 5/8 | 15.35–16.25 | 24.35–25.56 | 1.5 | 72 | 255 | 95 |
| 3/4 | 18.60–19.85 | 28.25–29.55 | 1.5 | 60 | 231 | 133 |
| 7/8 | 21.85–22.86 | 32.25–33.55 | 2 | 52 | 189 | 145 |
| 1 | 24.89–26.16 | 35.55–36.85 | 2 | 47 | 144 | 189 |
Automated notifications use email only. WhatsApp and WeChat are public contact options.
Send the application, medium, dimensions, working pressure, temperature and quantity. Include a product name or link if you have a candidate.
